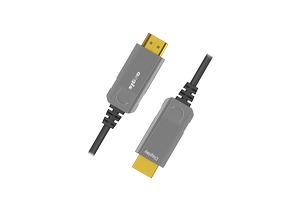

EXP-AOC-101x (HDMI® 2.0)
Aegis 4K HDMI® 2.0 AOC (Active Optical Cable) breaks through traditional transmission limitations, achieving ultra-long-distance high-definition video transmission with support for 4K60Hz signals up to 100 meters and 18Gbps bandwidth specifications. Using fiber optic technology, the cable is not only slim and lightweight but also offers excellent flexibility, with a 45mm bend radius for more versatile and convenient installation. Its unique optical-electrical conversion design requires no external power supply while providing superior EMI/RFI electromagnetic interference protection.
DOWNLOAD DATASHEET
Features:
◎ Fiber optic transmission up to 100 meters
◎ 18Gbps bandwidth, supports 4K60Hz 4:4:4 and 3D features
◎ Compatible with HDMI® 2.0 devices
◎ Hybrid fiber optic construction ensures lossless signal transmission
◎ Plug-and-play, no drivers or external power required
◎ Compliant with RoHS 2.0 and REACH standards
◎ Supports HDCP and EDID auto-detection
| EXP-AOC-101x Specification | |
| Video Input | HDMI® Type-A |
| Video Output | HDMI® Type-A |
| Video Version | HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| DDC | Supports DDC2B and EDID auto-detection Maximum Transmission Bandwidth |
| Maximum Transmission Bandwidth | 18G, Deep Colors 12bit, HDR, BT2020 |
| Maximum Digital Resolution | 4K 60Hz |
| Audio Specifications | Supports 32 audio channels |
| Connector Plating | 24K gold-plated |
| Cable Outer Material | PVC/TPU (Custom) |
| Cable Type | Hybrid cable, OM3 fiber optic and copper wire |
| Cable Outer Diameter | 4.5mm |
| Cable Length | 10M~100M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| ORDERING INFO | |
| EXP-AOC-1011 | 4K HDMI 2.0 AOC (Active Optical Cable), transmission 4K60Hz signals up to 100 meters and 18Gbps, 10m |
| EXP-AOC-1012 | 4K HDMI 2.0 AOC (Active Optical Cable), transmission 4K60Hz signals up to 100 meters and 18Gbps, 15m |
| EXP-AOC-1013 | 4K HDMI 2.0 AOC (Active Optical Cable), transmission 4K60Hz signals up to 100 meters and 18Gbps, 20m |
| EXP-AOC-1014 | 4K HDMI 2.0 AOC (Active Optical Cable), transmission 4K60Hz signals up to 100 meters and 18Gbps, 25m |
| EXP-AOC-1015 | 4K HDMI 2.0 AOC (Active Optical Cable), transmission 4K60Hz signals up to 100 meters and 18Gbps, 30m |
