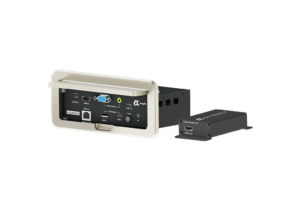

4KCHANGER-TC2

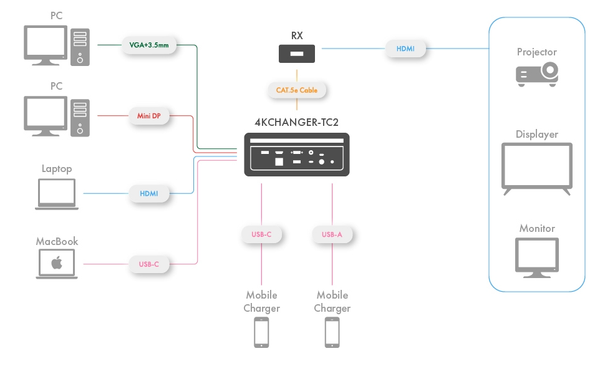

The Aegis 4KCHANGER-TC2 is a professional-grade embedded desktop signal switcher featuring a 30m Cat6 HDMI® signal extension. It supports HDMI®, Mini DisplayPort, VGA, and Type-C inputs, converting them into a unified HDMI® output with a maximum resolution of 4K@60Hz.Equipped with intelligent source auto-detection and a one-touch switching button, the system also offers Ethernet passthrough, POC (Power over Cable) support, and USB charging functionality. Designed with a sleek pop-up mechanism, it seamlessly integrates into desks, podiums, and other conference setups, delivering a high-performance AV solution for modern meeting spaces.
DOWNLOAD DATASHEET
Features:
◎ Supports Full HD 1080p@60Hz, 3D, and 4Kx2K@60Hz HDMI® signal transmission.
◎ Utilizes audio-video conversion technology, enabling uncompressed and zero-latency transmission of Mini DP, HDMI®, VGA+3.5mm, and USB 3.1 Type-C audio-video signals.
◎ Supports USB 2.0 BC1.2 and USB 3.1 Type-C mobile device charging.
◎ Supports RJ45 passthrough functionality.
◎ Features smart video signal switching with auto-detection and button input selection capabilities.
◎ Supports HDCP, CEC, and 24-bit deep color.
◎ Supports 4K 60Hz UHD signal extension up to 5M and 1080P 60Hz FHD signal extension up to 10M via HDMI® 2.0 cable.
◎ Supports POC (Power Over Cable) remote power supply functionality.
◎ Supports uncompressed LPCM audio and compressed audio formats including DTS-HD, Dolby TrueHD, and Dolby Digital.
| 4KCHANGER-TC2 Specification (Transmitter) | |
| High-Fidelity Audio Encoding | 2.2 |
| Input Ports | Mini DisplayPort X 1 |
| HDMI® X 1 | |
| VGA X 1 | |
| Audio X 1 -3.5mm Stereo Jack | |
| USB 3.1 C X 1 | |
| Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru) | |
| Output Ports | RJ45 X 1 |
| USB 2.0 A X 1 -5V/ 1.5 Amp -BC 1.2 | |
| USB 3.1 C X 1- 5V/ 2.0 Amp | |
| Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru) | |
| Control Ports | Select button X 1 – |
| Power Supply | 24VDC / 1.5 Amp (US / UK / AUS / EU Power Plug) |
| Power Consumption | 36 W – Max. |
| Chassis Material | Metal |
| Operating Temperature | 0℃ -40℃ / 32℉ -104℉ |
| Storage Temperature | -15℃ -55℃ / 5℉ -131℉ |
| Humidity | 5 – 85% RH (Non-Condensing) |
| Dimensions ( L × W × H ) | 7.2 in (184 mm) X 3.1 in (80 mm) X 3.6 in (90 mm) |
| Weight | 736 g |
| ORDERING INFO | |
| 4KCHANGER-TC2 | Multi-Function Signal Converter with 30M Receiver |
