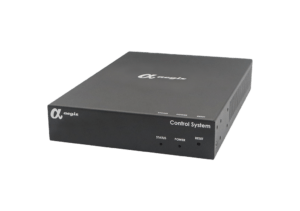

4KPROIP-CBS
Aegis 4KPROIP-CBS is a professional-grade AV over IP control and management system that adopts a 10G standard Ethernet architecture to achieve uncompressed, zero-latency 4K UHD audio and video transmission. It provides a comprehensive AV management solution. With an intuitive drag-and-drop interface, users can easily create professional application scenarios such as video walls, multi-view displays, and matrix switching. The system supports the independent transmission of video, audio, USB, RS232, and IR control signals, with each signal inpidually routable to different destinations, significantly enhancing system deployment flexibility. In terms of audio processing, it offers audio embedding and de-embedding functions to meet the application needs of various professional environments. 4KPROIP-CBS features a built-in web interface, allowing users to perform remote control through a computer, laptop, or any smart device with internet access, delivering unparalleled management convenience.
DOWNLOAD DATASHEET
Features:
◎ Uncompressed and zero-latency video signals.
◎ Automatically detects all device signals in the PRO AV environment.
◎ Highly flexible and scalable.
◎ Distributes video signals using a 10GbE network switch.
◎ Seamless video switching.
◎ Supports 4K 60Hz HDR.
◎ Built-in upscaling and downscaling functions to adapt to any display resolution.
◎ Enables creation and management of display configurations via the web interface, including matrix, video walls, multi-view, and point-to-point setups.
◎ Compatible with smartphones, tablets, laptops, and computers for remote control.
| Specification | |
| Video Interface | HDMI 1.4/2.0 |
| Supported Resolutions | 3840 x 2160p@60Hz @50Hz @30Hz @24Hz 1920 x 1200@60Hz @50Hz @25Hz @24Hz @60Hz, 1680 x 1050@60Hz,1600 x 1200@60Hz,1600 x 900@60Hz,1440 x 900@60Hz,1400 x 1050@60Hz,1366 x 768@60Hz, 1280 x 1014@60Hz,1280 x 960@60Hz,1280 x 800@60Hz 1280 x 768@60Hz,1280 x 720@60Hz,1280 x 720p@50Hz 1014 x 768@60Hz,800 x 600@60Hz,720 x 576p@50Hz 720 x 480p@60Hz,640 x 480p@60Hz, , |
| Control Interface | RS232, Infra , USB2.0 ,Gigabit Ethernet |
| Point-to-Point Latency | Zero |
| Maximum Pixel Clock | 594 MHz |
| Power Supply | DC 12V 3A |
| Power Consumption | 15.24 w |
| ESD Protection | Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge) |
| Operating Temperature / Humidity | 0°C ~ 45°C / 32°F ~ 113°F 10~90% RH (non-condensing) |
| Storage Temperature / Humidity | -20°C ~ 70°C / -4°F ~ 140°F 10~90% RH (non-condensing) |
| Weight | 210 x 139 x 35mm (W x L x D) |
| Net Weight | 1.5kg |
