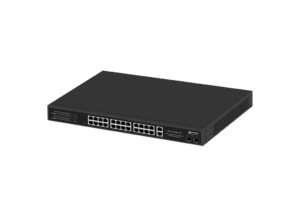

AVP-Controller-102

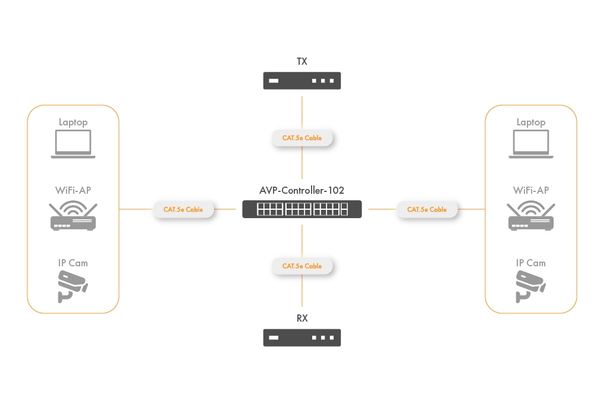

AVP-Controller-102 is a multi-functional device that perfectly integrates a network switch with an AV over IP control box, making it especially suitable for HDMI® over IP and IP camera applications. As a user-friendly OT (Operational Technology) PoE switch, it provides quick access buttons for specific scenarios, allowing users to switch quickly between different application settings, reducing the operational threshold. It also features a built-in Watchdog system for real-time monitoring of the overall system status. This enables detailed tracking of the operation of each RJ45 port and, based on monitoring information, automatically controls the PoE port's power on/off or restart to perform instant troubleshooting. As a powerful 4K over IP control box, it includes a redundancy mechanism that automatically switches to a backup system when the primary controller encounters an issue, ensuring uninterrupted operation of the video system. Paired with professional management software, AVP-Controller-102 can achieve matrix switching, video wall control, and scheduled tasks, making it widely applicable in fields such as education, digital signage, and surveillance systems
DOWNLOAD DATASHEET
Features:
◎ Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.1q standards.
◎ Adopts IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode.
◎ Operates in store-and-forward mode.
◎ Supports IEEE802.3af and IEEE802.3at PoE standards.
◎ Supports loop detection.
◎ Supports a 10K MAC address table.
◎ Provides PoE power supply with a maximum of 30W per PoE port and a total power output of 400W.
◎ Switching Capacity up to 166Gbps.
◎ Supports Web GUI management.
◎ Supports jumbo frames.
◎ Features a dedicated control interface for specific applications such as AV over IP.
◎ Supports graphical controls to monitor the status of each port and independently restart PoE.
◎ Independently detects the power and current of each LAN port.
◎ Supports certain L3 protocols, such as IGMP multicast.
◎ Allows the integration of custom third-party software to support additional functionalities, such as aegis AV over IP.
◎ Supports an IP Watchdog to restart PoE for troubleshooting.
| AVP-Controller-102 Specification | ||
| Chipset | Quad-core Cortex-A55 | |
| Standard Compliance | IEE802.3 , IEE802.3u , IEE802.3ab , IEE802.4x , IEE802.1q | |
| Interface | 24 x 10/100/1000Mbps PoE ports + 1 x Uplink + 2 x optical port | |
| Transmission Method | Store-and-Forward | |
| Mac Address Table | 10K | |
| Switching Capacity | 166Gbps | |
| Packet Forwarding Rate | 123.504Mbps | |
| Packet Buffer | 4M bits | |
| Jumbo Frame | 10K | |
| Power Supply | AC 100-240V 50/60Hz | |
| Power Consumption | Up to 400w | |
| Operating Temperature | -10ºC～70ºC RH 10 ~ 90% (non-condensing) | |
| Storage Temperature | -20ºC～75ºC RH 5 ~ 90% (non-condensing) | |
| LED Indicators (Device) | Power | Green |
| Sync | Green | |
| LED Indicators (Port) | Link/ACT | Green |
| PoE | Green | |
| Dimensions (W x L x H) | 300 x 440 x 46 mm | |
| ORDERING INFO | |
| AVP Controller 102 | IP Controller-4K60-1G-KVM W/Control Software & APP Control& Enviroment Control (24 Port L2 IGMP PoE Switch ) |
