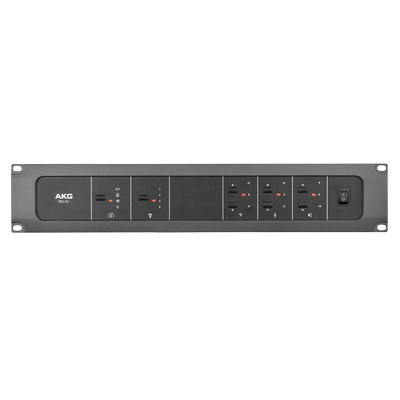

CONFERENCE SYSTEM BASE UNIT

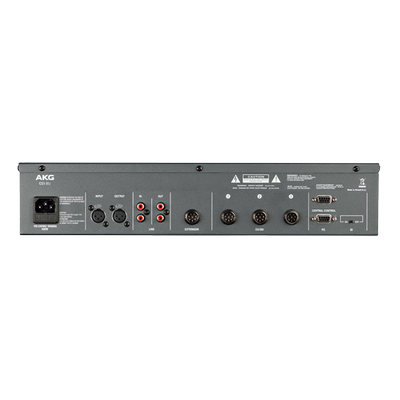

The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system.
The CS3 BU can even work in a stand-alone mode in four selectable operating modes offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4 or 6 simultaneous open microphones.
FEATURES:
- All in one conference controller: for discussion systems of up to 60 stations per base unit
- Four selectable operating modes: for flexible conference management
- Connects to all relevant devices: e.g. PA, recording, ext. audio and camera control systems
- Compact 19" housing: for easy rack mounting
TECHNICAL SPECIFICATIONS:
General Specifications | |
| Power Supply | SMPS 100-240V (50Hz / 60 Hz) 3A |
| Static Consumption | 13W |
| Nominal Power Consumption | 320W |
| Output Power | ≤90W / 24V each way |
| Mode | Balanced / Unbalanced |
| Frequency Response | 50Hz-20kHz |
| S/N | >80dB |
| Harmonic Distortion | <0.5% |
| Harmonic Distortion at Overload | <1% |
| Crosstalk Attenuation (1kHz) | >50dB |
| Operating Temperature | 0°C - 40°C at 95% relative humidity (non-condensing) |
ORDERING INFO
| WIRED CONFERENCE SYSTEM | |
| CS3EC002 | CS3EC002 CS3 2 Meter Cable |
| CS3EC005 | CS3 5 meter cable |
| CS3EC050 | CS3 50 meter cable |
| CS3 EC100 system cable 100m | CS3 100 meter cable |
| CS3 ECT002 syst. cable 2m, T con. | CS3 2 meter cable with T connector |
| CS3ECT005 | CS3 5 meter cable with T connector |
| CS3TC | CS3 T connector |
| CS3LC | CS3 connector |
| CS3DU30CE | Delegate Unit with 30cm/12in gooseneck |
| CS3CU30CE | Chairman Unit with 30cm/12in gooseneck |
| CS3DU50CE | Delegate Unit with 50cm/20in gooseneck |
| CS3CU50CE | Chairman Unit with 50cm/20in gooseneck |
| CS3BUCE | Base Unit |
