CHAIRMAN MICROPHONE STATION

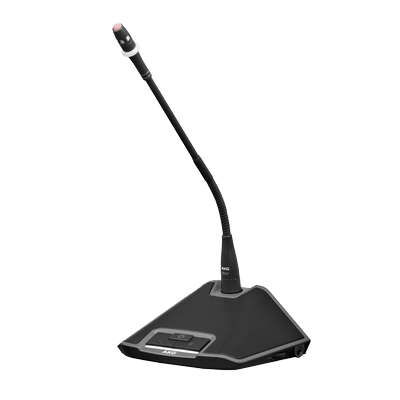

The CS3 CU chairman unit is a microphone station with two operating modes. In "priority call" mode, the user can manually mute all connected delegate stations. In "next in line" mode the CS3 CU automatically activates the next delegate station in the waiting list. The station provides a built in speaker and 2 x 3.5 mm stereo jacks to connect headphones for up to two delegates.
The CS3 CU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521.
The CS3 CU set-box contains a 2 m long Plug 'n' Play connector cable as well as the preferred microphone choice.
FEATURES:
- Chairman functions with "Priority" and "Next in line" buttons to Give full control over the entire conference/system
- Built in speaker for near field reinforcement
- Interchangeable microphones with maximum flexibility for any type of conference situation
- Two separate 3.5 mm stereo jacks to connect headphones for up to two delegates
- Plug 'n' Play set that Includes all components for a quick set-up
TECHNICAL SPECIFICATIONS:
| Power Supply | DC24V Supplied by the Base Unit |
| Power Consumption | 3W |
| Loudspeaker Power | 2W |
| SNR | >80dB |
| Frequency Response | 50Hz-20kHz |
| Intercommunication | DIN 8-pole |
| Headphone Output | 9dBu, 8-32ohm, 3.5mm |
| Crosstalk Attenuation | >80dB |
| Harmonic Distortion | <0.1% |
| Operating Temperature | 0°C to 40°C at 95% relative humidity (non-condensing) |
ORDERING INFO
| WIRED CONFERENCE SYSTEM | |
| CS3EC002 | CS3EC002 CS3 2 Meter Cable |
| CS3EC005 | CS3 5 meter cable |
| CS3EC050 | CS3 50 meter cable |
| CS3 EC100 system cable 100m | CS3 100 meter cable |
| CS3 ECT002 syst. cable 2m, T con. | CS3 2 meter cable with T connector |
| CS3ECT005 | CS3 5 meter cable with T connector |
| CS3TC | CS3 T connector |
| CS3LC | CS3 connector |
| CS3DU30CE | Delegate Unit with 30cm/12in gooseneck |
| CS3CU30CE | Chairman Unit with 30cm/12in gooseneck |
| CS3DU50CE | Delegate Unit with 50cm/20in gooseneck |
| CS3CU50CE | Chairman Unit with 50cm/20in gooseneck |
| CS3BUCE | Base Unit |
