DELEGATE MICROPHONE STATION

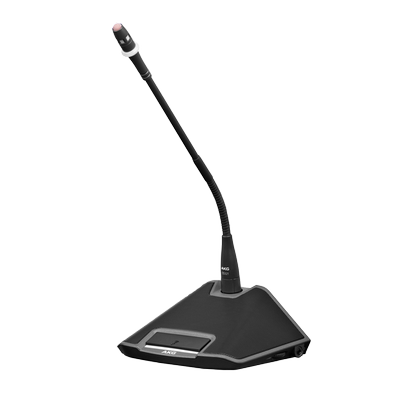

The CS3 DU microphone station is the basic delegate unit for the CS5 conference systems. It provides both an integrated loudspeaker as well as two 3.5 mm stereo headphone outputs and could be used for up to 2 delegates. Depending on the selected operating mode, the PTT key enables the speaker to directly switch on their microphone or to enter the system waiting list. The CS3 DU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521. The CS3 DU set-box contains a 2 m long Plug 'n' Play connector cable as well as the preferred microphone choice.
FEATURES:
- Delegate station with PTT button intuitive and easy to use For maximum flexibility for any type of conference situation.
- Built in speaker for up to two delegates.
- Interchangeable microphones for near field reinforcement
- Two separate 3.5 mm stereo jacks to connect headphones for a quick set-up
- Plug 'n' Play set includes all components
TECHNICAL SPECIFICATIONS:
| Power Supply | DC24V Supplied by the Base Unit |
| Power Consumption | 3W |
| Loudspeaker Power | 2W |
| SNR | >80dB |
| Frequency Response | 50Hz – 20kHz |
| Intercommunication | DIN 8-pole |
| Headphone Output | 9dBu, 8-32ohm, 3.5mm |
| Crosstalk Attenuation | >80dB |
| Harmonic Distortion | <0.1% |
| Operating Temperature | 0°C to 40°C at 95% relative humidity (non-condensing) |
ORDERING INFO
| WIRED CONFERENCE SYSTEM | |
| CS3EC002 | CS3EC002 CS3 2 Meter Cable |
| CS3EC005 | CS3 5 meter cable |
| CS3EC050 | CS3 50 meter cable |
| CS3 EC100 system cable 100m | CS3 100 meter cable |
| CS3 ECT002 syst. cable 2m, T con. | CS3 2 meter cable with T connector |
| CS3ECT005 | CS3 5 meter cable with T connector |
| CS3TC | CS3 T connector |
| CS3LC | CS3 connector |
| CS3DU30CE | Delegate Unit with 30cm/12in gooseneck |
| CS3CU30CE | Chairman Unit with 30cm/12in gooseneck |
| CS3DU50CE | Delegate Unit with 50cm/20in gooseneck |
| CS3CU50CE | Chairman Unit with 50cm/20in gooseneck |
| CS3BUCE | Base Unit |
