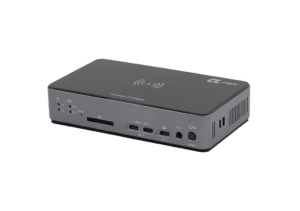

DSP-USBC-1000
Aegis DSP-USBC-1000 USB-C 8K_14-in-1 Docking Station provides a comprehensive expansion solution for modern professionals. It supports display output at resolutions up to 8K 60Hz and allows connection of up to three monitors on Windows systems using SST and MST modes, while macOS supports mirror mode output. Featuring Thunderbolt 3/4 technology, it is fully compatible with a wide range of USB-C devices, offering multiple ports including USB-C 3.2, USB-A, and 1Gbps Ethernet. It comes equipped with Power Delivery 3.0 laptop charging technology and integrates dual-coil wireless charging, delivering charging speeds up to 1.4x faster than standard wireless chargers and providing a broader charging area. With a single connection cable, all functions are seamlessly integrated, making it an ideal solution for business professionals, content creators, and designers seeking a streamlined and highly efficient workspace.
DOWNLOAD DATASHEET
Features:
◎ Expand connectivity for your MacBook Pro, Chromebook, Dell XPS, or any other USB-C compatible laptop, with Thunderbolt technology support. ◎ Supports single-port video output up to 8K (7680×4320) @ 60Hz, and supports SST and MST modes (Mac OS only supports mirror mode).

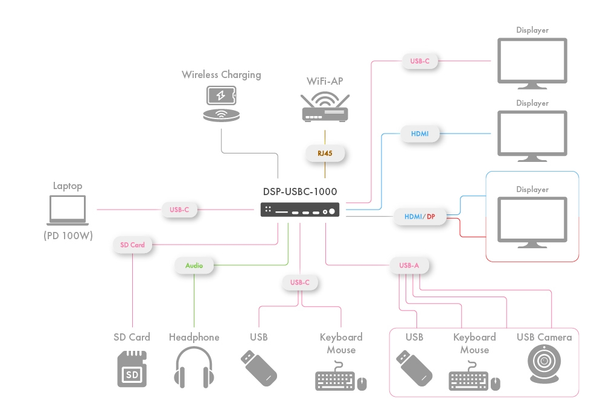

◎ Equipped with HDMI, DisplayPort (DP), and USB-C ports, it can drive up to three external displays simultaneously.
◎ Supports HDR (High Dynamic Range) technology and multiple color sampling formats such as YCbCr 4:4:4, 4:2:2, and 4:2:0.
◎ Supports 100W Power Delivery 3.0 (PD) fast charging, providing ample power for operation and charging of connected laptops via a single USB-C cable.
◎ Provides two USB-C 3.2 data ports and two USB-A 3.0/2.0 ports each
◎ Provides an Ethernet port supporting up to 1Gbps (Gigabit)
◎ Features a dedicated audio output port.
◎ Supports wireless charging of external devices (Quick Charge 2.0).
| DSP-USBC-1000 Specification | |
| Resolution | Triply Port: Up to 4K30Hz |
| Dual Port: Up to 4K60Hz | |
| Single Ports: Up to 8K60Hz | |
| USB-C Input Ports/PD 3.0 | Thunderbolt 3/4 port compatible, with 100 watt power delivery |
| USB-C 3.2 Gen 2 x2 Ports | Up to 10G data speed (1 Port BC1.2 Fast-Charge) |
| USB-A 3.2 Gen1 x2 Ports | Up to 5G data speed |
| USB-A 2.0 x2 Ports | Up to 480Mbps data speed |
| Speaker/Microphone | 3.5mm Phone jack PCM |
| SD Card Reader | SD 4.0 |
| RJ45 Ethernet Port | 10/100/1000Mbps |
| Power Supply | DC 24V 5.5A-132W /Power Delivery (PD3.0) Max 100W |
| ORDERING INFO | |
| DSP-USBC-1000 | Type C 8K Docking Station 14-in-1 |
