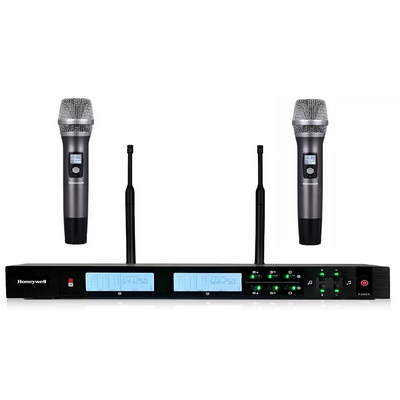

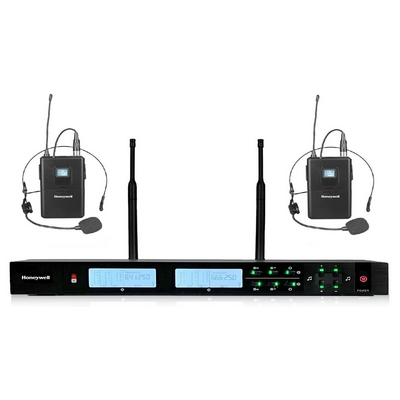

HCS-100WL / HCS-100WLH

Thương hiệu: HONEYWELL

Loại: CONFERENCE SYSTEM

0₫

UHF Microphone System

Honeywell HCS-100W series is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. HCS-100W series is a high-performance solution for any situations where several radio mics will be used simutaneously, including gigs at clubs and stages, for regional events, seminars or house of worship applications.

DOWNLOAD DATASHEET

FEATURES:

- UHF receiving frequency band, the frequency range is between 640MHz and 690MHz

- The receiver can adjust left and right multiple channels without interference with each other.

- Automatic antenna persity function: improve the effective arrange of the receiver.

- Anti-interference sound table filtering is adopted to fully eliminate interference signals.

- Work of all-digital DSP system.

- Digital volume output control system; high-fidelity audio output system.

- Built-in microcomputer battery management module circuit, protect the battery from damage.

- Width maximum service range 80m, and 60m for complex environment.

TECHNICAL SPECIFICATION
Frequency Range:	640Mhz - 690Mhz
Frequency Stability:	+/-10ppm
Dynamic Range:	100dB(A)
Frenquency Response(dB):	40Hz - 18KHz (3dB)
T.H.D	≤ 0.3%
Channel No.:	2 x 100
Channel pace:	250KHz
Receiving Sensitivity:	-103dBm ~ -90dBm
Antenna Port:	BNC (50Ω)
Audio Output:	Balanced and Mixed
Receiving Power:	12V-500mA
Transmit Modulation Mode:	FM (max. +/-75KHz)
Transmit Power:	≤ 20mW
Emission harmonic suppression:	60dB
Battery Life:	2 x 1.5V(AA) battery, 4hours (continuous working)
