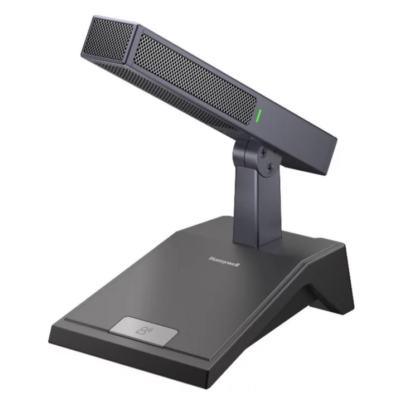

Conference System Delegate Microphone
The HCS-C01DP is a Delegate microphone for a conference system that combines easiness in setup and use with professional audio quality. The modern and elegant design to fits any meeting rooms. Reliability and ruggedness are two of the main features of the system. The Main Unit connects to all relevant devices like PA, recording, external audio sources and camera control system. Different working modes free or controlled speech, as needed
DOWNLOAD DATASHEET
Features:
- T-type hand-in-hand connection with higher liability
- Support the cable “hot swap”.
- Super directional microphone with pick up distance upto 80cm
- Unidirectional, anti-pop, built-in windproof cover
- Metal base, prevent interference from mobile phone, electromagnetism or high frequency
- Microtube length: 202mm.
- With video tracking function support.
- Comes with 2m extension cable.
TECHNICAL SPECIFICATIONS
Model | HCS-C01DP |
Frequency Response | 80Hz~15kHz |
Directivity | Hypercardioid |
Output resistant | 1200Ω |
Sensitivity | -35dB |
S/N | 60dB |
THD | <1% |
Power supply | DC18V from main unit |
Mic. stem length | 202mm |
Base size | 110x150x41mm |
ORDERING | |
HCS-C01DP | Delegate Microphone Unit |
HCS-C20 | 20m Extension cable |
HCS-C50 | 50m Extension cable |
