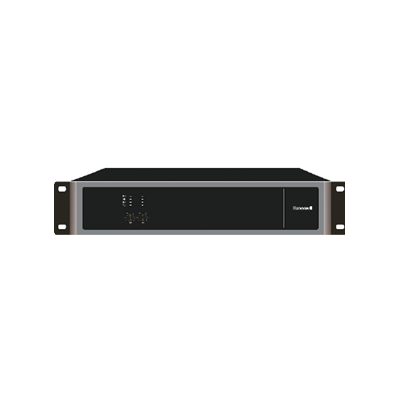

2x800W CLASS D PROFESSIONAL POWER AMPLIFIER
The HCS-DA2800 is a PRO amplifier with efficient and stable Class-D circuit. The harmonic distortion, inter modulation distortion and transient inter-modulation distortion all decrease to the lowest level by adding an efficient function of signal conversion, which brings a perfect amplification to the sound. Integrated component layout, strong and compact structure, well crafted workmanship. All these enable outstanding performance in a variety of application including music stages, meeting rooms, KTV rooms or large stadiums, vocal concerts, etc.
DOWNLOAD DATASHEET
Features:
- HCS-DA series amplifier is a class D digital power amplifier
- Built-in 2 channel analog inputs
- 800W per channels in stereo mode
- Extendable TCP, UDP, MQTT, RS485 protocol remote switch on/off module
- Expandable 2 channel DANTE digital inputs
- Adopt PWM superb power output design, with switchable 0.7V and 1.4V input
TECHNICAL SPECIFICATIONS
Model | HCS-DA2800 |
8Ω stereo output | 2x800W |
4Ω stereo output | 2x1200W |
8Ω bridge output | 1x2400W |
Input level | 0.77V or 1.44V |
Input connector | XLR female |
Input impedance | 20K Ω Balance |
Output connector | Speakon |
S/N | >100dB |
Channel isolation | -75dB |
THD | <0.3%(20Hz~20KHz) |
Frequency Response | 20Hz~20KHz(+/-0.3dB) |
Cooling method | Stepless fan |
Protection | Short, Open, DC, Over-heat, Over-voltage, Radio frequency, Ultralow frequency |
Power input | AC 180~240V, 50~60Hz |
Unit / Packing Dimension | 483x419x88mm / 595x545x145mm |
Weight | N.W.:10.2kg, G.W.:13.2kg |
Working Temp. | <45°C |
Store Temp. | -20°C~40°C |
ORDERING | |
HCS-DA2800 | 2x800W@8Ω stereo power amplifier |
