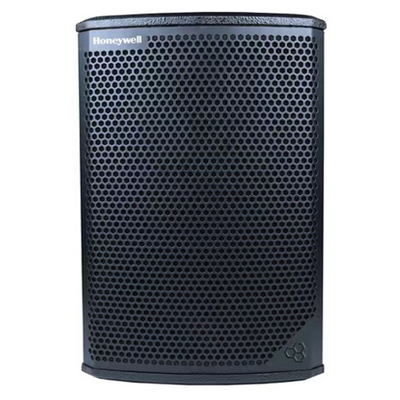

180W SINGLE 10-INCH 2-Way Loudspeaker
The HCS-FS10S is a 2-way full-range loudspeaker designed for near-field contracting applications. Fitted with one 10 inch neodymium woofer and one 1 inch exit neodymium compression driver coupled to a rotatable horn. It is an ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality, especially in stores, schools, offices, hotels, KTV rooms, restaurants or in other built-in audio applications can play excellent voice and music.
DOWNLOAD DATASHEET
- High quality plywood with special environmental protection paint
- Rotatable 90°×60° horn
- Top hat fitting for tripod
- Light weight, convenient to move and fix installation
- Flexible mounting options
- Used for moving performance, multi-purpose hall, conference room, hotel, KTV and bands.
TECHNICAL SPECIFICATIONS
Model | HCS-FS10S |
Frequency Response (-10dB) | 80 Hz-19kHz |
Drivers | 1×10"(50mm)/3"voice coil LF, 1×1"(25mm)/1.7"voice coil HF |
Rated Power | 180W RMS,720W peak |
Sensitivity | 94dB 1watt/1 metre |
Maximum SPL | 116dB peak |
Impedance | 8 ohms nominal |
Dispersion (-6dB) | 90°×60° |
Crossover Frequency | 2.2kHz passive |
Input Connectors | 2×Speakon NL4 |
Product Size | 515×303×298mm |
Net Weight | 13.8 kg/pc |
Gross Weight | 16.8 kg/pc |
Operating Temperature | -25ºC ~ +60ºC |
Storage Temperature | -40ºC ~ +70ºC |
Relative Humidity | <95% |
ORDERING | |
HCS-FS10S | Single 10 inch speaker 180W (RMS), 720W (Peak) at 8ohm |
