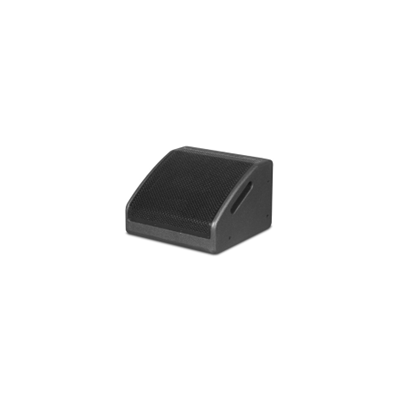

300W SINGLE 12-INCH 2-Way Monitor Loudspeaker
The HCS-FW300A is a high precision and high power stage monitor speaker, made of high quality plywood with polyurea paint. It offers a "studio monitoring" type of response, exceptional dynamic capability and very low distortion. Fitted with one 12 inch neodymium woofer and one 1-inch exit neodymium compression driver coupled to a patent 70° x 40° horn. It is an ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality, especially in stores, schools, offices, hotels, KTV rooms, restaurants or in other built-in audio applications can play excellent voice and music.
DOWNLOAD DATASHEET
Features:
- High quality plywood with special environmental protection paint
- Neodymium HF Driver and LF Driver.
- Patent 70°×40° horn
TECHNICAL SPECIFICATIONS
Model | HCS-FW300A |
Frequency Response (-10dB) | 90 Hz-20kHz |
Drivers | 1×12"(300mm)/3"voice coil LF, 1×1"(25mm)/1.7"voice coil HF |
Rated Power | 300W RMS,1200W peak |
Sensitivity | 97dB 1watt/1 meter |
Maximum SPL | 121dB continuous,127dB peak |
Impedance | 8 ohms nominal |
Dispersion (-6dB) | 70°×40° |
Crossover Frequency | 2.3kHz passive |
Input Connectors | 2×Speakon NL4 |
Product Size | 540×300×430mm |
Net Weight | 18 kg/pc |
Gross Weight | 21 kg/pc |
Operating Temperature | -25ºC ~ +60ºC |
Storage Temperature | -40ºC ~ +70ºC |
Relative Humidity | <95% |
ORDERING | |
HCS-FW300A | Single 12 inch monitor speaker, 300W (RMS), 1200W (Peak) at 8ohm |
