WIRELESS CONFERENCE SYSTEM

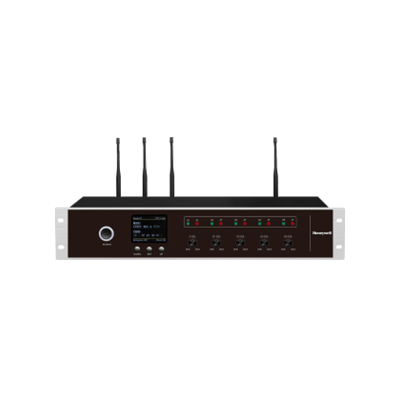

MASTER CONTROL UNIT
- Digital control with multiple speech mode.
- Microphone unit equipped with rechargeable Li-battery.
- Easy operation, convenient installation, economic and practical.
- Built-in whistle prevention technology with lossless audio sound.
- Adjustable microphone sensitivity.
- Capacity of system microphone < 1000pcs.
- Prevent interference from mobile phone, electromagnetism or high frequency.
- Many wireless conference system can be installed to different venues in the same building.
- Wireless mic. digital FM tuning and transmission technology to assure high quality sound.
- LCD display to show main unit status and system menu.
- Long press power button can turn off mic. power.
- Adjustable mic. gain with dynamic level indicator.
- Speech member limit function to set delegate unit quantity (1/2/3/4 optional)
- Speech member FIFO mode.
- Audio communication mode : Ultra-high frequency radio waves
TECHNICAL SPECIFICATION | |
MODEL | HCS-WSC1 |
Audio communication mode | Ultra-high frequency radio waves |
Audio frequency range | 610MHz~664.75MHz |
Audio channel | 5 CH |
Control communication mode | Wireless 433MHz |
Control frequency range | 422.4MHz~439MHz |
Control channel | 16 CH |
Receiving sensitivity | -100dBm |
Signal coverage | Radius approx.: 30m |
Frequency response | 50Hz~15kHz |
Total audio gain | ≤20dB |
S/N | >85dB |
THD | <0.8% |
Power consumption | <7W |
Power supply | DC12V-15V, ≥1A |
Dimension | 485X100X355mm |
ORDERING INFORMATION | |
HCS-WSC1 | Wireless Main Control Unit |
HCS-WAE1 | Wireless Antenna Expander. |
