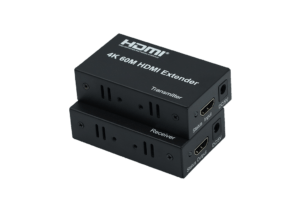

EXP-HDMI-1000

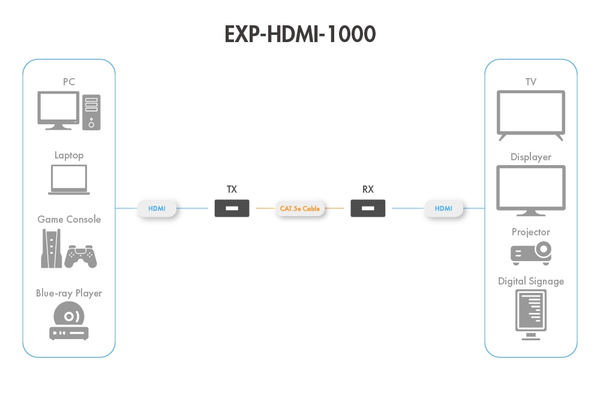

Aegis EXP-HDMI®-1000 is a HDMI® extender that uses a single Cat5e/Cat6 network cable instead of traditional HDMI® cables to extend 4K@30Hz high-quality signals up to 60 meters. The product fully supports HDMI® 1.4b and HDCP 1.4 standards, offering 340MHz bandwidth and 3×3.4Gbps transmission rate to ensure stable video signal delivery. Built-in EDID management allows flexible switching between 1080P and 4K output modes, perfectly supporting various display devices. With its low power consumption design, low operating temperature, and high security, it is an ideal long-distance audio-visual transmission solution for video conferencing, command and control centers, multimedia teaching, and home theater applications.
DOWNLOAD DATASHEET
Features:
◎ Audio and video signals can be transmitted without delay via Cat.5e (or above) network cable.
◎ Transmission distance up to 60M with support for resolutions up to 4K 30Hz.
◎ Complies with HDMI® 1.4b standard specifications.
◎ Supports HDCP 1.3 / 1.4.
◎ Supports EDID switching.
◎ Supports CEC.
◎ Supports HDMI® output resolution down-scaling.
| EXP-HDMI®-1000 Specification | |
| Cable Length | Up to 60 meters |
| HDMI® Input | 4k/1080p/1080i/720p/576p/576i/480p/480i |
| HDMI® Output | 4k/1080p/1080i/720p/576p/576i/480p/480i |
| Maximum Bandwidth | 340MHz |
| Maximum Baud Rate | 3×3.4Gbps |
| Input Video Signal | 0.5-1.5Volis P-P |
| Output DDC Signal | 5Volts P-P (TTL) |
| Input HDMI® cable distance | ≤10m AWG26 HDMI standard cable |
| Output HDMI® cable distance | ≤10m AWG26 HDMI standard cable |
| TXMaximum Operating Current | 350mA |
| RXMaximum Operating Current | 200mA |
| Power Adapter Format | Input : AC (50HZ, 60HZ) 100V-240V: Output: DC5V/1A |
| Operating Temperature Range | (-15 to +55°C) |
| Operating Humidity Range | 5 to 90%RH(No Condensation) |
| Dimensions (L × W × H) | 81x47x22 (mm) |
| TX Weight | 102g |
| RX Weight | 103g |
| ORDERING INFO | |
| EXP-HDMI-1000 | HDMI 4K/30 Over Cat.5e Extender |
