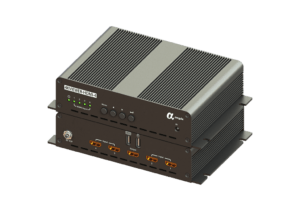

4KVIEWER-HDMI-4

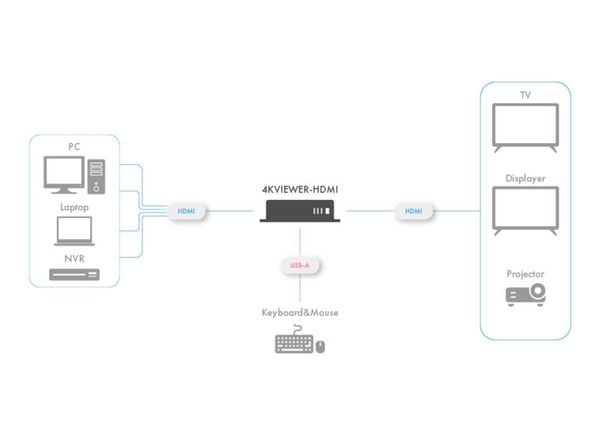

Aegis 4KVIEWER-HDMI®-4 achieves functionality by combining 4-port HDMI® with various display modes, including Quad View Mode, Picture-in-Picture Mode (dual, triple, or quad screens), Dual Screen Mode (dual, triple, or quad screens), Picture-on-Picture Mode, and Full-Screen Mode. Control and switching between computer/video sources can be flexibly performed using front panel buttons, an infrared remote control, On-Screen Display (OSD), or hotkey combinations from the console’s keyboard and mouse.
DOWNLOAD DATASHEET
Features:
◎ Multi-View Mode: Allows users to view and control up to four video channels on a single screen, with display modes including Quad Split, Picture-in-Picture (PiP), Picture-by-Picture (PbP), and Picture-on-Picture (PoP).
◎ Easily Resize and Reposition: Users can adjust the size and/or position of PiP or PbP windows to meet their viewing needs.
◎ System Configuration: Display modes and KVM port selection can be managed via the front panel, OSD, infrared remote control, and Enter Net commands.
◎ Superior Image Quality: Supports resolutions up to 4K (3840 x 2160 30 Hz).
◎ Drop-Down Menu: Use the console mouse and on-screen control panel to edit display windows and access other functions.
| 4KVIEWER-HDMI-4 Specification | |
| Number of Connections | 4 |
| Port Selection | Front-panel Pushbuttons, Hotkeys, IR Remote Control, On screen Display (OSD), Commands |
| Connector | 1 x HDMI®(out), 4 x HDMI®(in) |
| 2 x USB Type A Female | |
| Keyboard & Mouse Emulation | USB |
| Switch | 4 pushbuttons |
| Video | 3840 x 2160 30Hz |
| Maximum Input Power Rating | DC12V3A |
| Power Consumption | 24W |
| Operating Temperature | 0–40ºC |
| Storage Temperature | -10–60ºC |
| Humidity | 0–80% RH, Non-condensing |
| Material | Metal |
| Weight | 1.238Kg |
| Dimensions (L × W × H) | 204 x 133 x 48mm |
