Features & Benefits:

• Modular design fits a wide variety of applications

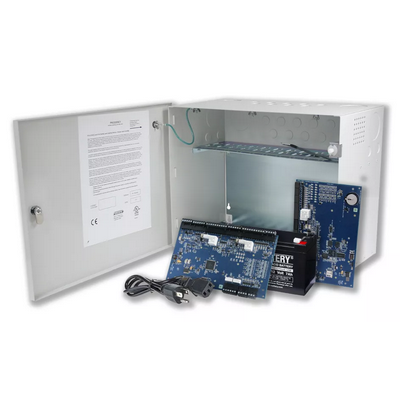

• Up to 9 modules, power supply and battery can be accommodated by the PRO22ENC1, PRO22ENC2 and PRO22ENC5 (no battery) enclosures
• User programmable relay outputs allow for specific control needs
• User programmable alarm inputs offer flexible system configuration and control
• RS485 communication to all modules
• Analog to digital converter technology provides digital filtering and input conditioning
• Dedicated cabinet tamper and power monitor inputs
• Supports the choice of normally open, normally closed, supervised, and non-supervised circuits
• Supports a wide range of reader technologies including OSDP and Wiegand
• System off-line modes customizable per reader include secured access, locked (no access), and unlocked (full access)
• Supports multiple reader and card formats for maximum flexibility and security options
• Operating modes includes locked, unlocked, secure access, card only, card and PIN, card or PIN and PIN only

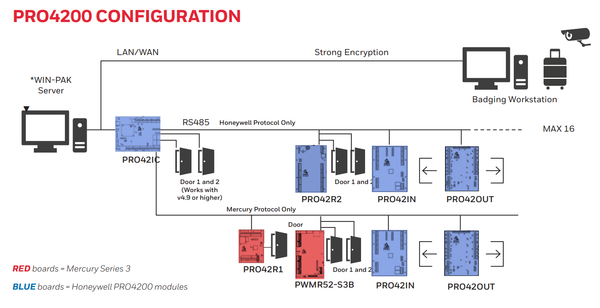

• Any combination of 16 downstream I/0 or readers modules may be connected to the PRO42IC RS485 ports. 4,000 ft (1,250 m) total bus length per port
• Supports over 50,000 transaction buffer

• Mercury Powered

PRO4200 Professional Series Access Modules
