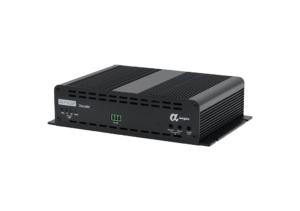

4KPROIP-CAT-DE
The aegis 4KPROIP network series includes the 4KPROIP-CAT-EN encoder and 4KPROIP-CAT-DE decoder. The aegis 4KPROIP-CAT-DE decoder is a key component of a professional-grade IP video solution. It receives and decodes video signals via a 10Gb Ethernet switch and outputs them to display devices through an HDMI® interface. Utilizing SDVoE technology, it supports UHD 4K60Hz (4:4:4) resolution, delivering uncompressed, zero-latency premium audio and video quality, with a single Cat.6 network cable supporting transmission distances of up to 100 meters. The system offers a variety of display configuration options, including matrix switching, video walls, and multi-view displays. Built-in video scaling functionality enhances system scalability, while the web interface, infrared, and RS232 interface provide a convenient operational experience. This solution is particularly suitable for professional application scenarios such as commercial exhibitions, educational venues, large-scale events, surveillance systems, and medical environments.
DOWNLOAD DATASHEET
Features:
◎ Supports 4K60Hz ultra-high-definition resolution.
◎ Supports delay-free, lossless and uncompressed HDMI® video transmission.
◎ Bidirectional IR pass-through function.
◎ Bidirectional RS232 control support.
◎ 3.5mm audio input/output support.
◎ Resolution scaling function.
◎ Cat 6 network cable transmission up to 100M.
◎ Supports virtual matrix, video wall, multi-view display, and video extender functions.
◎ User-friendly GUI control interface, accessible via smartphone, tablet, laptop, and PC.
| 4KPROIP-CAT-DE Specification | |
| Power Supply | Input: 100-240VAC 50-60Hz Output:12V / 3A |
| Inputs | 10G LAN Port x 1 |
| Outputs | HDMI® x1, IR x2, Audio x1, 1G RJ45 x1, RS232 x1, |
| HDMI® | HDMI® 2.0 with HDP |
| HDCP | HDCP 2.2 Compliant |
| RS 232 | 115Baud Rate (Pass-through) |
| IR | 30kHz-60kHz (Bi-directional) |
| Compression | Uncompressed |
| Latency | Zero |
| Resolution | 4K/60hz 4:4:4 |
| Weight | 1420g |
| Operating Temperature | -20℃ to +55℃ (-68℉ to 131℉) |
| Storage Temperature | -30℃ to +70℃ (-86℉ to 158℉) |
| Humidity | 10% to 90% |
| Dimensions (L × W × H) | 204x133x48mm |
| Enclosure | Aluminum Housing |
