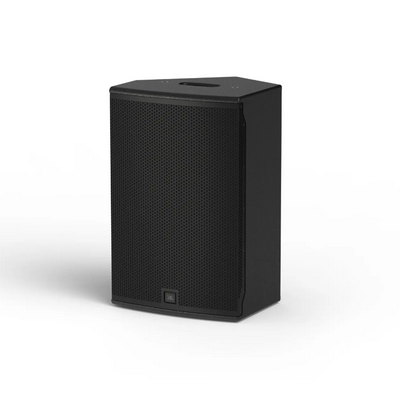

12-inch Powered Multi-purpose Speaker
The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.
Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.
JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.
DOWNLOAD DATASHEET
Features
- Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
- 272F woofer employs JBL’s patented Differential Drive® technology
- Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
- 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage
- LF extension reaches down to 50 Hz
- 80 Hz high-pass preset available for applications using SRX900 subwoofers
- 42-degree monitor angle for use as a high-performance, full-range stage monitor
- Voicing and phase response optimized to match SRX900 line-source products
- Integrated amplification delivers plug-and-play operation
- Rear LCD enables fast configuration
- DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
- Six M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
- Constructed from outdoor-grade Baltic birch plywood for excellent durability
Specifications
| Frequency Range (-10dB) | 50 Hz-20 kHz |
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 133 dB |
| System Type | Multi-purpose point-source, two-way powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| LF Driver | (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive® |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlex finish, one integral handhold |
| Suspension | (6) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 585 mm x 380 mm x 341 mm (23.0 in x 15.0 in x 13.4 in) |
| Net Weight (each) | 20.6 kg (45 lbs) |
