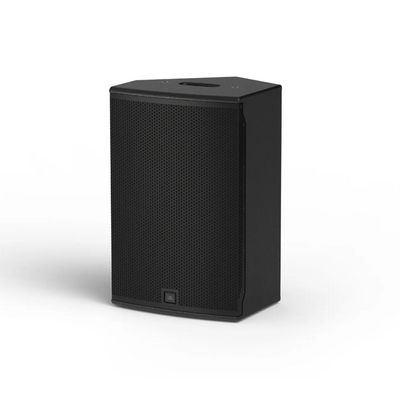

15-inch Powered Multi-purpose Speaker
The SRX915M is a high-output, multi-purpose, two-way 15-inch powered point-source loudspeaker designed for applications that require greater low-frequency extension and increased headroom. It is ideally suited for use as a main PA or as a high-performance stage monitor. When deployed as a monitor, the enclosure’s multi-purpose design provides a 45-degree monitor angle in a low-profile package.
Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of dedicated accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.
JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.
DOWNLOAD DATASHEET
Features
- Includes single 15-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
- 275F woofer employs JBL’s patented Differential Drive® technology
- Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
- 90° × 60° rotatable Progressive Transition™ waveguide ensures smooth, predictable coverage
- LF extension reaches down to 50 Hz
- 80 Hz high-pass preset available for applications using SRX900 subwoofers
- 45-degree monitor angle for use as a high-performance, full-range stage monitor
- Voicing and phase response optimized to match SRX900 line-source products
- Integrated amplification delivers plug-and-play operation
- Rear LCD enables fast configuration
- DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
- Seven M10 Quick-Link™ attachment points included for suspension using standard M10 eye bolts
- Constructed from outdoor-grade Baltic birch plywood for excellent durability
Specifications
| Frequency Range (-10dB) | 50 Hz-20 kHz |
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 134 dB |
| System Type | Multi-purpose point-source, two-way powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| LF Driver | (1) JBL 275F, 15 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive® |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlexTM finish, two integral handholds |
| Suspension | (7) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 666 mm x 428 mm x 367 mm (26.2 in x 16.9 in x 14.5 in) |
| Net Weight (each) | 24.7 kg (55 lbs) |
