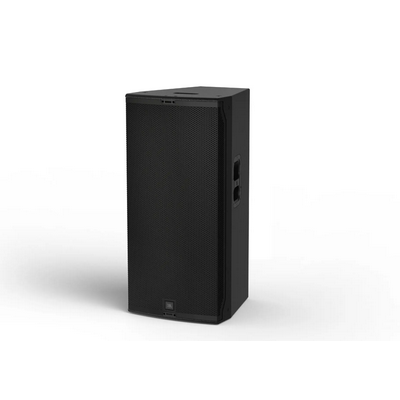

Dual 12-inch Powered Point-source Speaker
The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments.
The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications.
Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.
DOWNLOAD DATASHEET
Features
- Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
- Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
- Dipole configuration delivers enhanced vertical directivity control
- Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
- Dual 90° × 60° Progressive Transition™ waveguides provide smooth, predictable coverage
- Four large, flared ports extend low-frequency response down to 50 Hz
- 80 Hz high-pass preset available for applications using SRX900 subwoofers
- Voicing and phase response carefully optimized to match SRX900 line-source products
- Integrated amplification delivers plug-and-play operation
- Rear LCD enables fast configuration
- DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
- Eight M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
- Constructed from outdoor-grade Baltic birch plywood for excellent durability
Specifications
| Frequency Range (-10dB) | 40 Hz-17.5 kHz |
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 138 dB |
| System Type | Point-source, acoustically three-way, bi-amplified, powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 1100 Watts | LF: 550 Watts | MHF: 550 Watts |
| LF Driver | (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive® |
| MF Driver | (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles |
| Suspension | (8) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 944 mm x 440 mm x 505 mm (37.2 in x 17.3 in x 19.9 in) |
| Net Weight (each) | 45.5 Kg (100 lbs) |
