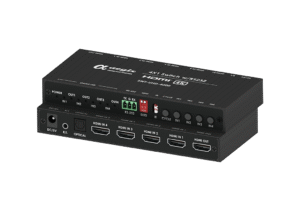

SWT-UHD-4000
Aegis SWT-UHD-4000 is a HDMI® switcher that supports four HDMI® source inputs and outputs to a single display device. This product supports up to 4K 60Hz resolution and HDR technology, featuring smart automatic signal switching and time polling functions, with customizable 10/15/20 second auto-cycling options. It supports various audio output formats, including optical and analog stereo, providing a complete solution for professional audio-visual applications. Equipped with audio output ports for convenient connection to headphones, speakers, or amplifiers.
DOWNLOAD DATASHEET
Features:
◎ Supports up to 4K 60Hz resolution output.
◎ Intelligent signal auto-switching feature.
◎ Supports up to 18Gbps transmission rate, TMDS clock up to 600 MHz.
◎ HDMI® input polling function with automatic switching at 10/15/20-second intervals.
◎ Supports HDR and 3D video technologies.
◎ Compatible with HDMI® 2.0b and HDCP 2.2 standards.
◎ Multiple audio output options (Optical / Analog Stereo).
◎ Supports remote control and panel button operation.
◎ Durable metal housing design for long-lasting reliability.
| SWT-UHD-4000 Specification | |
| HDMI® Compatibility | HDMI® 2.0b |
| HDCP Compatibility | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 720p, 1080i, 1080p, 4K/30Hz, 4K/60Hz. |
| HDMI® Audio Formats | LPCM,DTS-HD/Dolby-trueHD/DTS/Dolby-AC3 |
| Color Space | 24/30/36bit Deep color |
| Output Ports | 1×HDMI® Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Input Ports | 4×HDMI® Type A [19-pin female] |
| Power Supply | Input: AC100~240V 50/60Hz; Output: DC5V/1A (US/EU standards，CE/FCC/UL certified) |
| Power Consumption | 600mA – Max. |
| Material | Metal |
| Color | Black |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -10°C ~ 55°C |
| Humidity | 20~80% RH (non-condensing) |
| Dimensions | 150mm(W)×67mm(D)×19mm(H) |
| Weight | 166g |
| ORDERING INFO | |
| SWT-UHD-4000 | HDMI 4K/60 4X1 Switch W/EDID |
