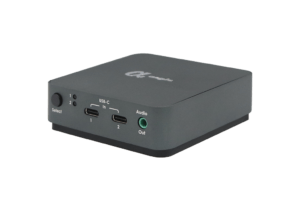

SWT-USBC-1000
Aegis SWT-USBC-1000 KVM Switch integrates dual USB Type-C to HDMI® functionality, allowing users to control two source devices using a single set of keyboard, mouse, and monitor. It supports up to 4K 30Hz resolution output and is fully compatible with Samsung DeX mode, enabling mobile devices to deliver a seamless big-screen workflow experience. Designed with a bus-powered architecture through the Type-C interface, it eliminates the need for an external power supply. Combined with plug-and-play functionality, it offers exceptional portability and ease of use. The device includes a built-in USB 3.2 Gen 2 hub, supporting 10Gbps high-speed data transfer and backward compatibility with USB 3.1 Gen 1, USB 2.0, and USB 1.1 standards. This enables efficient sharing of USB peripherals between two Type-C devices, providing a highly effective resource management solution.
DOWNLOAD DATASHEET
Features:
◎ Dual USB Type-C to HDMI® output with KVM functionality, compatible with laptops and mobile devices.
◎ Supports up to 4K resolution.
◎ Bus-powered, plug-and-play operation without an external power adapter.
◎ Supports Samsung DeX mode.
◎ Supports Apple iPad Pro.
* For other mobile devices with DP Alt Mode, only screen mirroring is supported.
| SWT-USBC-1000 Specification | |
| Model | SWT-USBC-1000 |
| Model Name | Dual C to HDMI® with KVM |
| Supported Resolutions | 480P/720P/1080P 24Hz/30Hz/50Hz/60Hz, up to 4K 30Hz, Supports 1080P 120Hz,/3D etc. |
| Computer | 2x USB 3.2 Type-C Female |
| Device | 2x USB 3.0 Type-A Female |
| HDR Support | YES |
| Output line length | HDMI®:4K/AWG 30 ≤2m,USB3.2-1m |
| Port Selection | Push Button |
| LED Indicator Light | Selected 2 (Green) |
| Maximum Power Consumption | 7.5W |
| Operating Temperature Range | -5 ~ +40℃ |
| Operating Humidity Range | 5 ~ 85%RH（No Condensation） |
| Storage Temperature | -15 to 55℃ |
| Storage Humidity | 5 ~ 95%RH(No Condensation) |
| Dimensions | 77.95 x 77.95 x 23.8 mm |
| Weight | 160g |
| Accessories | User manual x 1, Type-c cable 9 cm x 1 |
| ORDERING INFO | |
| SWT-USBC-1000 | Dual Type C to HDMI KVM Lite 4K/30 |
