SWT-USBC-1002

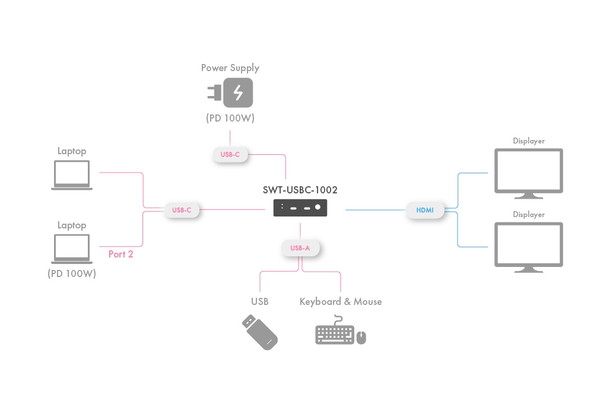

The Aegis SWT-USBC-1002 KVM switch features dual USB Type-C to dual HDMI® output, allowing users to seamlessly switch and control two source devices using a single set of keyboard and mouse. It supports up to 4K@60Hz resolution output and is compatible with Samsung DeX mode, enabling a large-screen experience for mobile devices. Designed for plug-and-play functionality, it requires no external power supply, drawing power directly from the USB-C interface for exceptional portability and convenience. Users can instantly switch between a laptop and a mobile device or manage two laptops simultaneously, supporting dual-screen output to provide a comprehensive multi-device management solution.
DOWNLOAD DATASHEET
Features:
◎ Dual USB Type-C to dual HDMI® output with KVM functionality, compatible with laptops and mobile devices.
◎ Supports resolutions up to 4K 60Hz.
◎ Bus-powered, plug-and-play operation without an external power adapter.
◎ Supports PD 3.0 charging up to 100W (USB-C Port 2).
◎ Supports Samsung DeX mode.
◎ Supports Apple iPad Pro.
◎ Supports MST Mode (Windows only) and SST Mode.
* For other mobile devices with DP Alt Mode, only screen mirroring is supported.
| SWT-USBC-1002 Specification | |
| Model No. | SWT-USBC-1002 |
| Model Name | Dual C to Dual HDMI® with KVM |
| TYPE C Resolution | 480P/720P/1080P 24Hz/30Hz/50Hz/60Hz up to 4K 60Hz Supports1080P 120Hz,/3D etc. |
| Computer | 2xUSB 3.2 Gen2 Type-C Female |
| Device | 2xUSB 2.0 Type-A Female, |
| Output ( PD ) | Support PD3.0 Max 100W (Port 2) |
| HDR Support | YES |
| Output Cable Length | HDMI®:4K/AWG 30 ≤2m,USB3.2-1m |
| Port Selection | Push Button |
| LED Indicator Light | Selected 2 (Green) |
| Maximum Power Consumption | 7.5W |
| Operating Temperature Range | -5 ~ +40℃ |
| Operating Humidity Range | 5 ~ 85%RH（No Condensation） |
| Storage Temperature | -15 ~ 60℃ |
| Storage Humidity | 5 ~ 95%RH(No Condensation) |
| Dimensions | 77.95 x 77.95 x 26.8 mm |
| Weight | 160g |
| Accessories | Manual x1 ; USB C Cable 1m x 2PCS |
| ORDERING INFO | |
| SWT-USBC-1002 | Dual Type C to Dual HDMI KVM 4K/60 |
