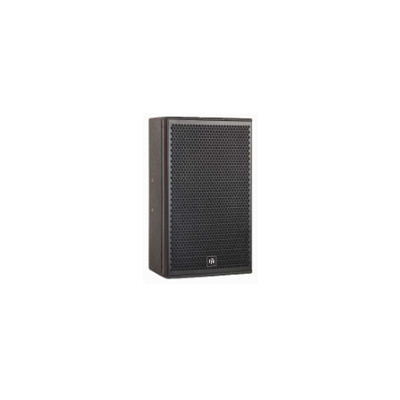

TK-S15

Thương hiệu: TK AUDIO
| |
0₫
525W, 15 INCH FULL FREQUENCY SPEAKER

PROJECT APPLICATIONS

  • The TK-S15 was designed to be applied to Classroom, conference room and multi function hall.
  • It can be used in coffee shop, private entertainment room, banquet halls.
  • It can be used in KTV entertainment rooms, dance halls, e-sports entertainment and other consumer entertainment places.



    Download Datasheet



    Tiêu đề
    Hotline hỗ trợ: 02473036818
    |
    Số lượng

    TECHNICAL SPECIFICATION
    Speaker sizeLF: 1 x 15” ; HF: 1 x 1”
    Nominal Impedance8 Ohms
    Frequency Range (-10db)60 Hz ~ 20 kHz
    Rated Power350W
    Peak Power525W
    Directivity90ºH x 40ºV
    Maximum SPL122dB / 1m
    Sensibility97dB (at 1W/1m and 70Hz – 17kHz)
    Frequency Division Point1.3kHz
    Box MaterialBirch Plywood
    Connecting socket2 x Neutrik NL4
    Packing Box size (HxWxD)691 x 440 x 450 (mm)
    Net weight30.4 kgs

    • The compact inverted box structure technology is applied: in optimizing the working environment of the driver, the sound restored by the speaker is clear and delicate, and the low frequency is strong.
    • Ensure that the wavefront is smooth, provide accurate beam pattern control, eliminate the interference in the area near the frequency pision point, and highlight the explanatory power of medium and high frequency.
    • Excellent passive filtering technology shows clear and beautiful intermediate frequency response, making the whole more natural.
    • The horn can rotate at 90° to meet the requirements of on-site horizontal and vertical installation of public address coverage.
    • Through good system configuration, it can form a surprisingly perfect sound field effect.
    • With humanized lifting point, it can also be matched with bottom bracket, which is convenient for installation of wall hanging and landing bracket, making installation more comfortable

    TK AUDIO – a brand owned and manufactured by Honeywell, Audiovisual pision. It is committed to provide to customer around the globe with reliable, user friendly, highest quality and lowest cost competitive audio system that are in accordance with Honeywell internal and international standards. Honeywell Audiovisual is affiliated to the Honeywell Building Technology under Honeywell International Group (Group Fortune Top 500), with a registered capital of 11 million US dollars. It is a well-known manufacture in China. Honeywell Audiovisual system creates a mission to provide a more complete, safer and more efficient public audio solution for all customers who use voice as the means of disseminating information or improving the environment.
