Thương hiệu: TK AUDIO
| |



-    8 channels of mono (microphone) input: 4 channels (2 groups) of stereo input: with 48V phantom power supply, each of which is controlled by independent phantom power switch.
-    Monophonic input channel adopts high, medium and low three-stage equalization adjustment, stereo input channel adopts highprecision four-stage equalization adjustment, and intermediate frequency adopts broadband sweep control; Two auxiliary outputs, and all auxiliary input controls can switch signals after selecting a fader and a fader.
-    Each input channel has switch control such as low cut, microphone/signal switching, two main outputs, two groups, and monitoring PFL.
-    Built-in professional 24-bit DSP digital effector, using 2x12LCD display.
-    With high-quality USB sound card, it can be connected to a computer for digital music broadcasting and recording.
-    It can be connected to mobile phones, PCs and other devices with Bluetooth transmission to play music wirelessly through the Bluetooth playback module of the product.
-    Output channel: One group of stereo main output and two groups of grouped output. Two sets of auxiliary outputs and one set of stereo monitoring outputs. A set of CD/TAPE outputs.
-    SMT surface mounting technology and external power supply make the noise of the equipment itself small. Low crosstalk and low AC sound.

Tiêu đề
Hotline hỗ trợ: 02473036818
Số lượng

Technical Specifications:

Frequency Response

20Hz – 20kHz (±0.5dB)

L and R Channel Crosstalk

-66B@20 kHz

Signal to Noise Ratio

90dB@1kHz, 0dB

MAX. balanced output of Main output Channel

24dB (±1.5dB)

Headphone output


Gain difference between channels


Degree of Distortion

0.002% @ 0dB, 1kHz

Monophonic channel Equalization

High Freq. point: 14 kHz

Medium Freq. sweep range: 200Hz – 8kHz

Low Freq. point: 80Hz

Stereo channel Equalization

High Freq.: 20kHz

Medium and High Freq.: 3kHz

Medium and Low Freq.: 500Hz

Freq. offset of central frequency point

< 8%

Maximum Gain Range

± 15dB

Effect Device

The effects of 21 DSPs are adjustable

Product size (W x D x H)

416 x 419 x 80 (mm)

Net Weight

7 Kgs

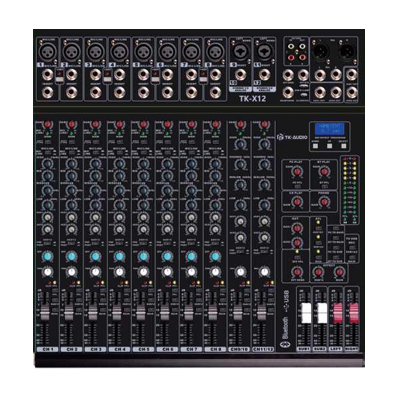

12 Channel Digital Audio Mixer
