Features:

•  Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main display without a dongle. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.
•  Clientless Connectivity — Airplay, Miracast, join through browser.
•  High Quality Video Streaming — Supports up to 4K resolution (using the VIA app Multimedia feature).
•  Auto Discover and Auto Join — A user can find neighboring VIA devices using the BLE tab and Auto Join in the case of a single discovery. If more than one nearby device is found, click Join on desired IP address.
•  Built–In Wi–Fi, LAN, and Bluetooth
•  Smooth Network transition within the same gateway while switching from wireless Network to LAN connection.
•  Preview — In Active Directory Moderator Mode, the moderator can preview the content of a presentation before allowing it to present.
•  Simultaneous Display — Four participants can simultaneously present content on main display.
•  Cloud–Based Management — VIA Site Management (VSM) cloud–based web application used to manage and configure large numbers of VIA devices from anywhere.
•  Easy and Flexible Installation — With a super–compact 9x9cm form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.
•  Present Privately (DND) Feature — Allows the presenter to continue the presentation without being interrupted.
•  Pause/Resume Presentation — Present at your convenience.

Applications:

•  Presentation environments
•  Small to mid–size meeting rooms
•  Classrooms
•  Huddle spaces

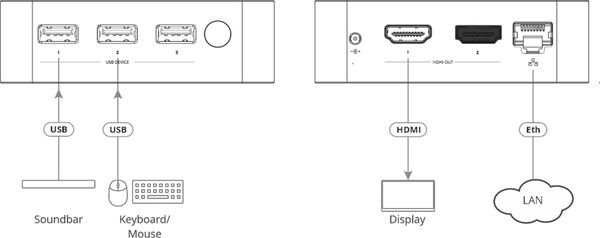

Ports

• 1 Ethernet: On an RJ–45 connector
• 3 USB 3.0: On a female USB type–A connector

Outputs

• 1 HDMI: 2.0: On a female HDMI connector

Control

• Management: VSM on Cloud

Video

• Max Resolution: Up to 4K Output

General

• Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band & Bluetooth
• Operating System: Linux

Power

• Source: 12V DC
• Consumption: 3.8A

Accessories

• Included: Power adapter

Environmental Conditions

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)

• Safety: CE, FCC, UL, BIS

Enclosure

• Type: Aluminium cooling, fan with sink, Kensington lock
• Dimensions: 89.9mm x 89.9mm x 36mm (3.54" x 3.54" x 1.42")

Product Dimensions

• 9.00cm x 9.00cm x 3.50cm (3.54" x 3.54" x 1.38" ) W, D, H

Product Weight

• 0.2kg (0.5lbs) approx.

Shipping Dimensions

• 15.90cm x 11.90cm x 11.10cm (6.26" x 4.69" x 4.37" ) W, D, H

Shipping Weight

• 0.9kg (1.9lbs) approx.

Ordering Info:
