AVP-EN1-100

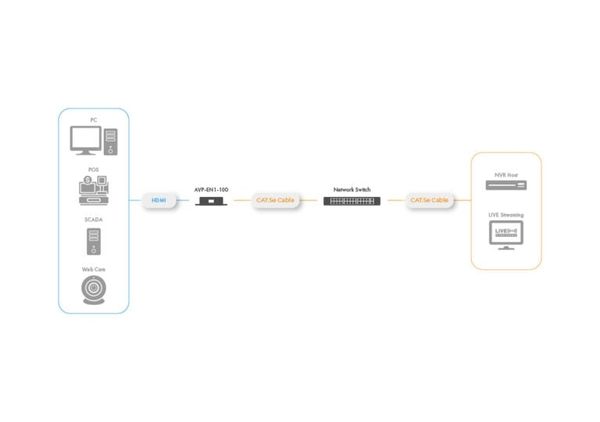

Aegis AVP-EN1-100 1080p video capture device offers exceptional stability and reliability, supporting continuous long-duration recording operations. The system integrates basic encoding and streaming capabilities, perfectly supporting various application scenarios including live streaming, IPTV system deployment, wireless video transmission, educational recording, video conferencing, and surveillance. Through its high-performance hardware architecture and advanced encoding technology, it provides professional-grade video processing performance, making it an ideal choice for various audio-visual applications.
DOWNLOAD DATASHEET
Features:
◎ Lightweight and portable.
◎ Supports up to 1080P 30Hz main stream and 720P 30Hz sub stream.
◎ Supports H.264 and H.265 encoding formats.
◎ Supports HTTP, HLS, RTSP, RTMP push streaming, RTMP pull streaming, UDP, and multicast.
◎ Supports simultaneous streaming to multiple live platforms.
| AVP-EN1-100 Specification | |
| Sampling Rate | 16k, 32k, 44.1k, 48k |
| Bitrate Range | Arbitrary setting, recommended 64k~256kbps |
| Encoding Format | AAC, PCMA, MP3, MP2 |
| Gain Adjustment | -24db ~ +24db, The default is 0, without adjusting the gain |
| Bitrate Range | 40Mbps |
| Rate Control | CBR、VBR、AVBR、FIXQP |
| Encoding Format | H.264、H.265 |
| Encoding Protocol | H.265 Main Profile, Level 5.0 H.264 Baseline/Main/High Profile，Level 5.1 |
| Advanced Encoding | SmartP，DualP，ROI |
| General Protocol | HTTP, HLS, RTSP, RTMP streaming, , UDP, multicast |
| SRT | Support |
| NDI | Support |
| Multi-Platform Live Streaming | Support |
| Network Input | Supports RTSP, RTMP and other network streaming format inputs for encoding/decoding and live streaming functions |
| Net Weight | 126g |
| Dimensions：L*W*H | 88*57*18mm |
