WIRELESS MICROPHONE SYSTEM
FEATURES:
RECEIVER:
- Detachable receiver antennas
- Up to 30 MHz selection bandwidth
- Professional balanced XLR and unbalanced ¼" jack output
- Audio clip and RF control LED on receiver
- Adjustable squelch level
TRANSMITTER:
- Patented state-of-the-art D5 dynamic capsule
- Integrated charging contacts (Optional Accessory: CU400)
- Six to eight hours with a single AA battery
- Noiseless on/off/mute switch
- Gain control on transmitter
| RECEIVER TECH-SPEC | |
| Frequency bands | A: 530,025 – 559,000 MHz; U1: 606,100 – 613,900 MHz; U2: 614,100 – 629,900 MHz; B1: 748,100 – 751,900 MHz; B2: 774,100 – 777,900 MHz; M: 826,300 – 831,000 MHz; D: 863,100 – 864,900 MHz; K: 925,100 – 931,850 MHz |
| Diversity system | Antenna switching |
| RF output | 10, 20 or 50 mW (depending on frequency band) |
| Audio bandwidth | 40 – 20 000 Hz (+/- 3dB) |
| Tuning range | Up to 30 MHz (depending on frequency band) |
| Max. channels | Up to eight compatible channels within one frequency band |
| Frequency selection | Fixed frequencies |
| Modulation | FM |
| Radio range (Line of sight) | 30 meter (with external antennas further distances achievable) |
| Rack size | ½ Racksize (19”) |
| HANDHELD TRANSMITTER TECH-SPEC | |
| Microphone capsule | Patented dynamic D5 capsule |
| Polar pattern | supercardioid |
| Signal to noise | 105 dB-A |
| THD at 1kHz | 0.8% |
| Audio bandwidth | 70 – 20 000 Hz (+/- 3dB) |
| Transmitter synchronization | Manual |
| Battery type | AA battery (LR 6 AA alkaline battery or HR 6 AA (NiHM) rechargeable battery) |
| Operating time: | Up to eight hours with one AA battery |
| Dimensions: | 237 x 51mm |
| Weight: | 214g |

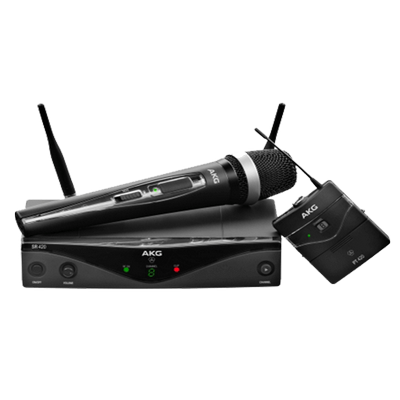

The WMS420 wireless microphone system provides a highly flexible as well as easy to use solution. The ultra high frequency system is set up within seconds and is equally suitable on stage as well as in locations where a single- or multi channel solution is needed. The entire WMS420 wireless system consists of the SR420 stationary receiver, HT420 handheld transmitter and the PT420 pocket transmitter. The HT420 handheld transmitter is available with the patented D5 dynamic microphone acoustics. This capsule guarantees maximum rejection against feedback, reduced handling noise and the famous AKG sound. Both transmitters are shipped with charging contacts that enable the use of rechargeable batteries. Moreover the transmitters offer exceptional eight hours of operation time from a single AA size battery, which dramatically reduces the operating costs in day-to-day use. The detachable receiver antennas allow the use of professional accessories, such as antenna splitters and remote mounted directional antennas for multi channel systems. The WMS420 series includes three different bodypack sets. The head-worn set includes the high performance C555 L condenser microphone. The presenter set includes the professional C417 L lavalier microphone. The guitar set includes an instrument cable. With the AKG WMS420 system up to eight channels can be run simultaneously.
