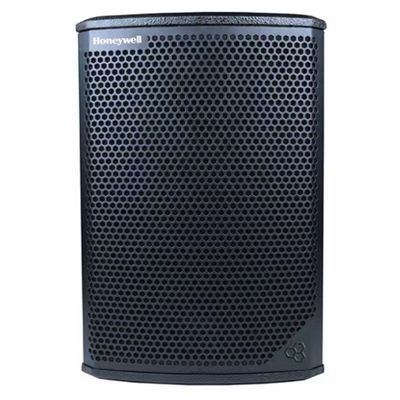

120W SINGLE 8-INCH 2-Way Loudspeaker
The HCS-FS8S is a 2-way full-range loudspeaker designed for near-field contracting applications. Fitted with one 8 inch neodymium woofer and one 1 inch exit neodymium compression driver coupled to a rotatable horn. It is an ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality, especially in stores, schools, offices, hotels, KTV rooms, restaurants or in other built-in audio applications can play excellent voice and music.
DOWNLOAD DATASHEET
Features:
- High quality plywood with special environmental protection paint
- Rotatable 90°×60° horn
- Top hat fitting for tripod
- Light weight, convenient to move and fix installation
- Flexible mounting options
- Used for moving performance, multi-purpose hall, conference room, hotel, KTV and bands.
TECHNICAL SPECIFICATIONS
Model | HCS-FS8S |
Frequency Response (-10dB) | 80 Hz-19kHz |
Drivers | 1×8"(35mm)/3"voice coil LF, 1×1"(25mm)/1.7"voice coil HF |
Rated Power | 120W RMS, 480W peak |
Sensitivity | 92dB 1watt/1 metre |
Maximum SPL | 112dB peak |
Impedance | 8 ohms nominal |
Dispersion (-6dB) | 90°×60° |
Crossover Frequency | 2.5kHz passive |
Input Connectors | 2×Speakon NL4 |
Product Size | 270×413×280mm |
Net Weight | 8.6 kg/pc |
Gross Weight | 11.5 kg/pc |
Operating Temperature | -25ºC ~ +60ºC |
Storage Temperature | -40ºC ~ +70ºC |
Relative Humidity | <95% |
ORDERING | |
HCS-FS8S | Single 8 inch speaker 120W (RMS), 480W (Peak) at 8ohm |
