ENTERPRISE SERVER

Thương hiệu: SCATI
| |
0₫
ENTERPRISE SERIES

RELEVANT FEATURES AND FUNCTIONS

  • Built on Windows, they are part of a fully scalable solution and are designed to work with any ONVIF camera.
  • Management of up to 64 megapixel cameras with total stability.
  • PoE switch integrated in the equipment with up to 24 PoE ports.
  • Advanced image processing algorithms incorporated.
  • Up to 8 3.5" HHD disks and up to 80TB of storage.
  • Supports HDD hot swap with RAID0, RAID1, RAID5 and RAID10 storage scheme configurable.
  • Functionalities that allow continuous health and operational monitoring are incorporated. In case of failure, they notify technical alarms.
  • They allow simultaneous video server to multiple clients and limit the transmission of information according to the available bandwidth.
  • Format designed specifically for large distributed installations.



    Download Datasheet



    Tiêu đề
    Hotline hỗ trợ: (+84-24)73036818
    |
    Số lượng

    ANALYSIS

    • Based on IP technology and within the SUITE VISION, these NVRs of up to 64 cameras have an integrated PoE switch to facilitate the commissioning of the cameras connected directly to the equipment, which provides significant cost savings.
    • As the recording needs are different in each project and in each customer, using cameras of higher or lower resolution, having to record for longer or shorter periods of time, continuously or by events, all SCATI VISION recorders allow configurable storage with disks specifically manufactured for use in video surveillance
    • Its design maximizes uninterrupted operation in the event of failures by implementing hardware redundancy in its components and RAID 5 storage configuration, making it ideal for mission-critical video surveillance operations.
    • The use of H.265 compression algorithms means that the images stored in the recorders require less storage (up to 40% less compared to other manufacturers using H.264) and that the transmission of images over the network can be carried out in a much lighter and smoother way.

    ORDERING INFORMATION

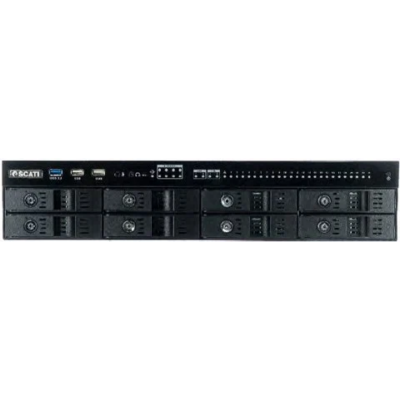

    VSJ-LXU-K724IP Storage Server, includes 32 recording licenses, expandable up to 64 recording licenses by upgrade. OS: Windows 10 in 64GB SSD, CPU: Intel Skylake i7, RAM: 8GB, HDD: 16TB (12TB in RAID5), Network: 2 GE x RJ45, 24 POE FE x RJ45. Upto 80TB Storage.
    LIC-IP-1CHSoftware licenses on SCATI VISION recorder/server. 1 additional IP channel.
